Our Quad Range

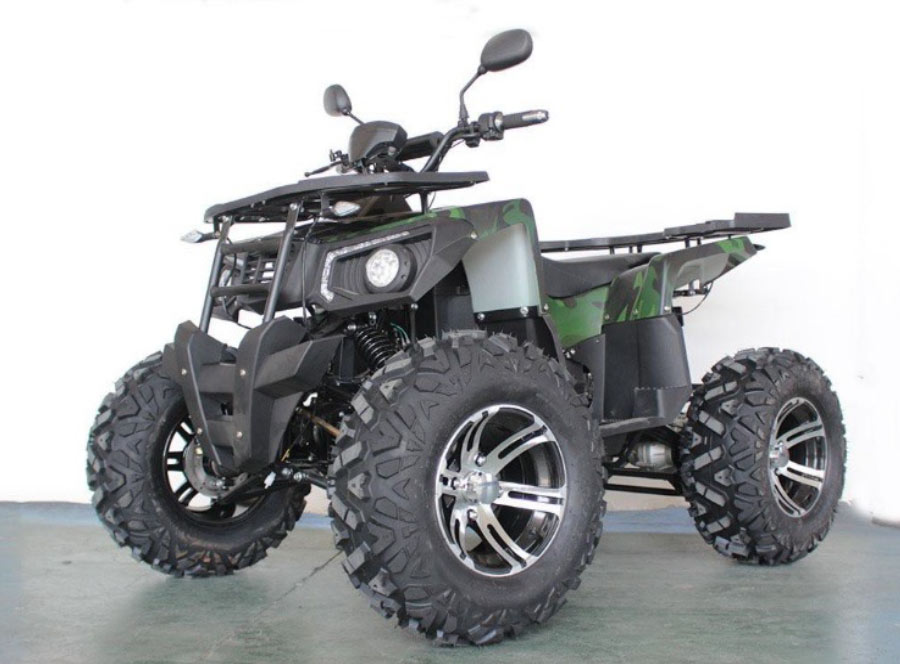

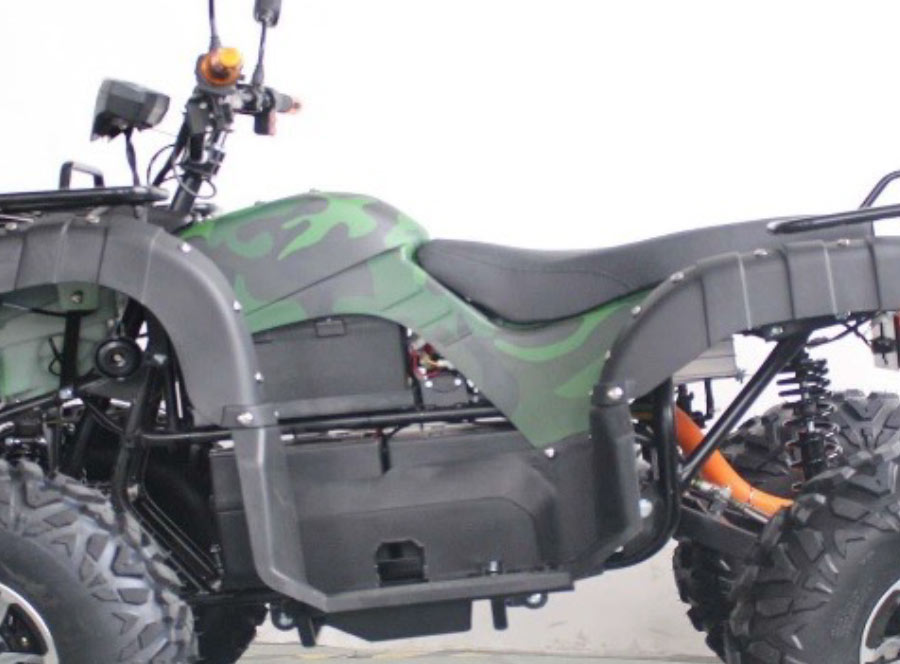

ATV 4200E 4WD

Included as standard

  • 72V52ah(6pcs x 12v52ah), lead acid batery
  • 4X4; Differential speed motor
  • Max speed: 62km/h
  • Front and Rear, Coil Spring OIL Damping
  • Front And Rear Disc Brake
Get a quote
Dimensions, weight & capacity
Battery:  72V52ah(6pcs x 12v52ah), lead acid, (li-ion option 50-100Ah) option
Motor:  Front 1200W, R2200W F:1200W, R:3000W 2WD/4WD button

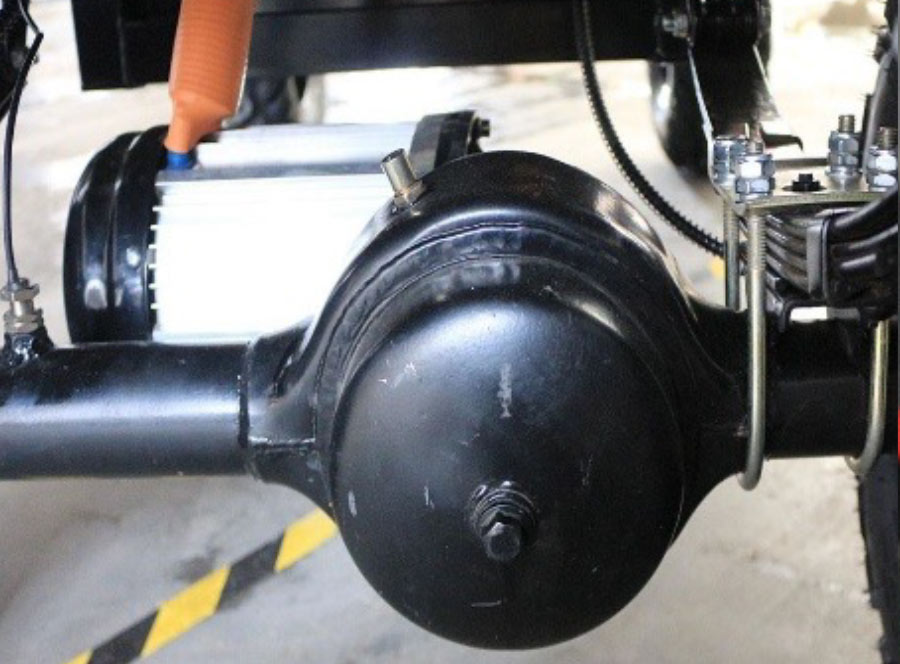

Motor type:  4X4; Differential speed motor;  Shaft drive option
Gears: Forward  8 : 1 Reverse, ratio 10 : 1
Charger:  240V 50-60Hz 72V/max3A
Brake:  Double disc brakes
Tire size:  Front 25x8-12"  Rear 25X10-12" alloy rim, off road tyre
Range:  45-55km
Max load:  260kg
Display: LCD meter &  2/4WD button

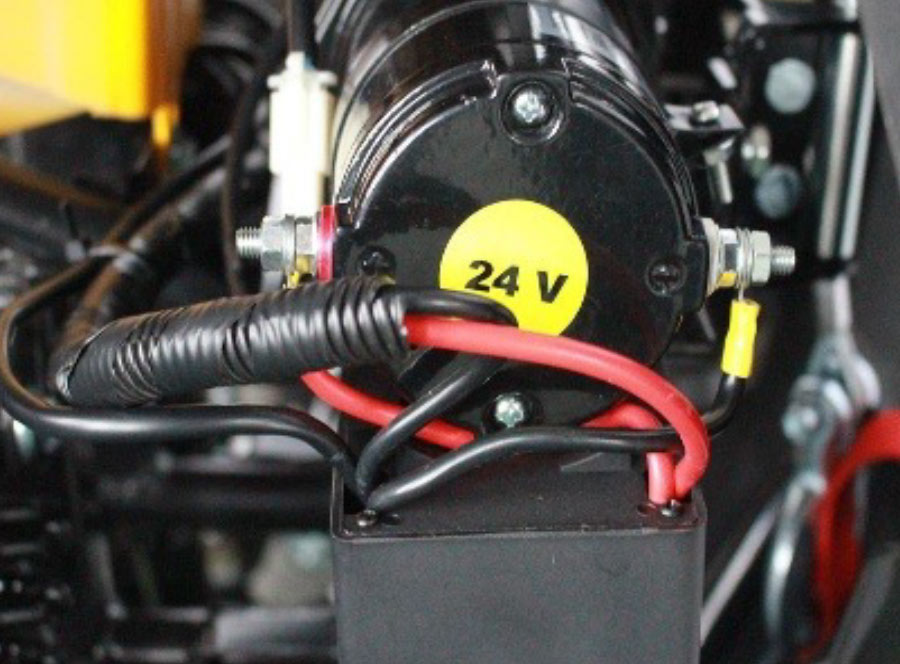

Winch: Yes
Back seat: With backrest

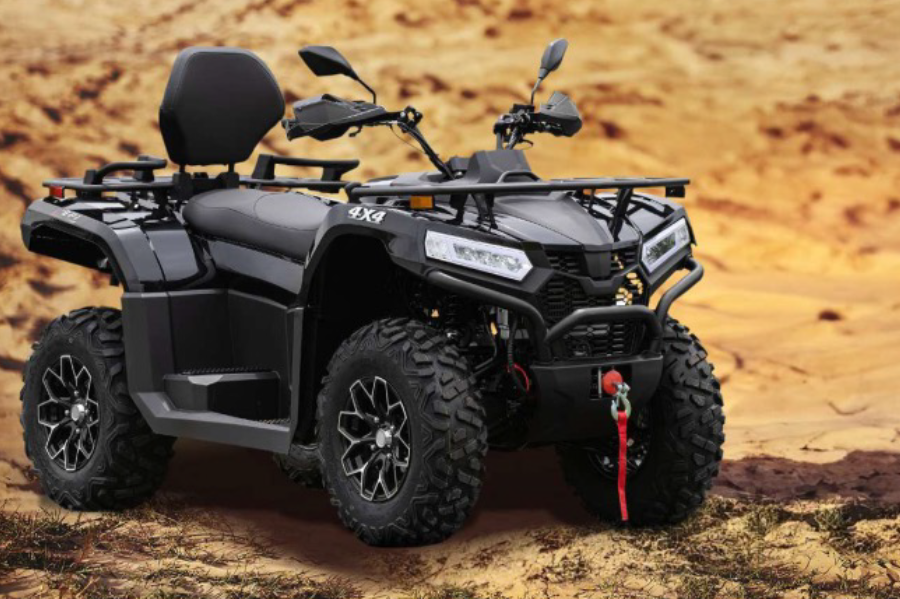

ATV 450

Included as standard

  • Single Cylinder, Water Cooling, Four Storke
  • Engine Balance Shaft
  • 4WD (other models available)
  • Max speed: 80 KM/H
  • 400 CC Displacement
  • Front and Rear, Coil Spring OIL Damping
  • Front And Rear Disc Brake
Get a quote
Dimensions, weight & capacity
Engine: Single Cylinder, Water Cooling, Four Storke, Engine Balance Shaft
Displacement: 400 CC
Output Max: 20Kw
Torque: 30N.m
Max speed: 80 KM/H
Compression Ratio: 10:01
Fuel Supply: Electronic Fuel Injection
Ignition Control: ECU
Transmission Gears: Low, High, Neutral, Reverse, Park
Transmission Type: CVT / Belt
Suspension: Front and Rear, Coil Spring OIL Damping
Wheel Rim: 12 x 6.5 AT / 12 x 7.5 AT
Tires: 25 x 8.00-12 / 25 x 10.00-12
Fuel capacity: 17L
Dimensions: 2315 x 1144 x1 340 mm(Two Seats Version)
Wheel Base: 1460 mm
Ground Clearance: 250 mm
Weight: 353 kg
Loading Capacity 240kg
Driving Mode: 4WD (other models available)
Towing Capacity: 250kg / 585kg(Trailer Must With Brake System) ask for details
Braking System: Front And Rear Disc Brake
Differential: Front Axle Differential
